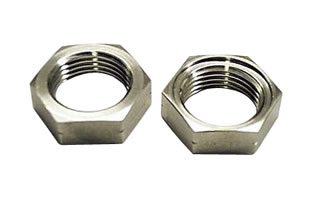

Tube Fitting, Nut (New Revision) - Tube Outer Diameter: 1/4", Thread: 7/16-20, Corrosion Resistant

Detail Characteristic
NUT HEIGHT0.281 INCHES NOMINAL
NUT STYLETUBE FITTING LOCKNUT
PACKING RECESS DEPTH0.042 INCHES NOMINAL
PACKING RECESS DIAMETER0.608 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATIONQQ-S-763,CLASS 304 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
MATERIALSTEEL COMP 304 OVERALL
NOMINAL THREAD SIZE0.438 INCHES
NOMINAL TUBE OUTSIDE DIAMETER0.250 INCHES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENTPASSIVATE OVERALL
THREAD CLASS3B
THREAD DIRECTIONRIGHT-HAND
THREAD SERIESUNF
THREAD QUANTITY PER INCH20
WIDTH ACROSS FLATS0.688 INCHES NOMINAL
NUT HEIGHT0.281 INCHES NOMINAL
NUT STYLETUBE FITTING LOCKNUT
PACKING RECESS DEPTH0.042 INCHES NOMINAL
PACKING RECESS DIAMETER0.608 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATIONQQ-S-763,CLASS 304 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
MATERIALSTEEL COMP 304 OVERALL
NOMINAL THREAD SIZE0.438 INCHES
NOMINAL TUBE OUTSIDE DIAMETER0.250 INCHES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-35,TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENTPASSIVATE OVERALL
THREAD CLASS3B
THREAD DIRECTIONRIGHT-HAND
THREAD SERIESUNF
THREAD QUANTITY PER INCH20
WIDTH ACROSS FLATS0.688 INCHES NOMINAL

Welcome Back
Winback Offer

Unit of Measure

Inventory

 N/A {0}

Estimated Ship Date

 N/A {N/A}

Inventory Note

 N/A Need additional stock? Call (877) 920-1876 or email

Weight

 N/A 0.02 lb

Alternate Part Number

 N/A AN6289J4

NSN

 N/A 4730-00-453-6187

NIIN

 N/A 00-453-6187

Part # Unpunctuated

 N/A AS5179J04

Minimum Order Note

 N/A Minimum order is 1. Must order in increments of 1.

Note

 N/A Our inventory is extensive. The majority of the items listed in our catalog are stocked and available for immediate shipment.

California Residents

 N/A Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
